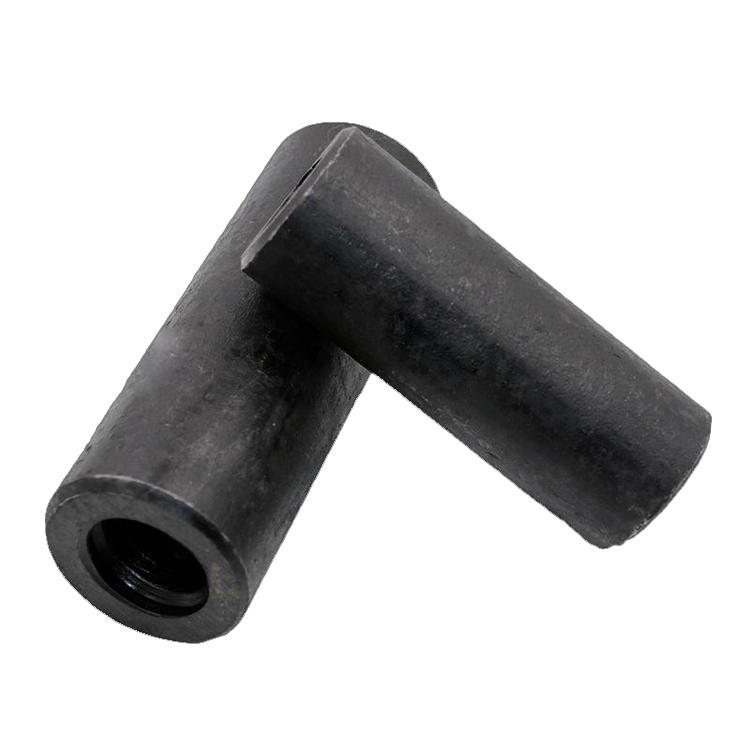

Coupler

Couplers are used for extending the hollow anchor bars. Couplers can safely transfer the system load, with the faces of anchor bolts bearing against each other to ensure safe energy transfer between the anchor bars and the drill bit without affecting the couplers mechanically.

All couplers are made from quality steel materials which are supplied by qualified suppliers. We refuse second-hand/recycled materials!



FEATURES

-   Sealing ring designed with Rayon patent

-   Cr40 high quality steel, EN10083

-   Hardness HRC 20-30

-   Thread L/R hand, R-thread/T-thread, ISO10208/ T standard

-   Corrosion protection: hot-dipped galvanized (HDG) according to EN ISO 1461 / epoxy coating (EC) according to EN 12944

-    Customizable



COUPLER SPECIFICATION DATA



Model

Outer   diameter

Length

Basic   Thread Size

Ultimate   loadKN

Yield   loadKN

WeightKg

Note

R25N

36

130

21.8*1.5/12.7

200

150

0.60

Can have sealing function

/ Hot dip galvanizing / customized



R25S

36

150

21.8*1.5/12.7

250

190

0.70

R32N

42

150

28.4*1.5/12.7

280

230

0.70

R32S

42

160

28.4*1.5/12.7

360

280

0.75

R38N

51

180

35*1.5/12.7

500

400

1.3

R38S

51

200

35*1.5/12.7

550

450

1.43

R51L

63

200

47*1.5/12.7

550

450

2.2

R51N

63

220

47*1.5/12.7

800

630

2.4

T30

42

105

26*2.2/13.2

320

260

0.6

T40

57

160

37*2.2/13.2

660

525

1.7

T52

68

180

49.5*1.5/13.2

930

730

2.2

T76L

97

160

70*3.1*12.7

1200

1000

3.8

T76N

97

180

70*3.1*12.7

1600

1200

4.25

T76M

97

200

70*3.1*12.7

1700

1300

4.7

T76S

97

220

70*3.1*12.7

1900

1500

5.2

T103N

125

220

96*3.1*12.7

2300

1800

7.75

T103S

145

260

96*3.1*12.7

3700

2600

17.5

T103

133

260

96*3.1*12.7

2500

2000

11.55
